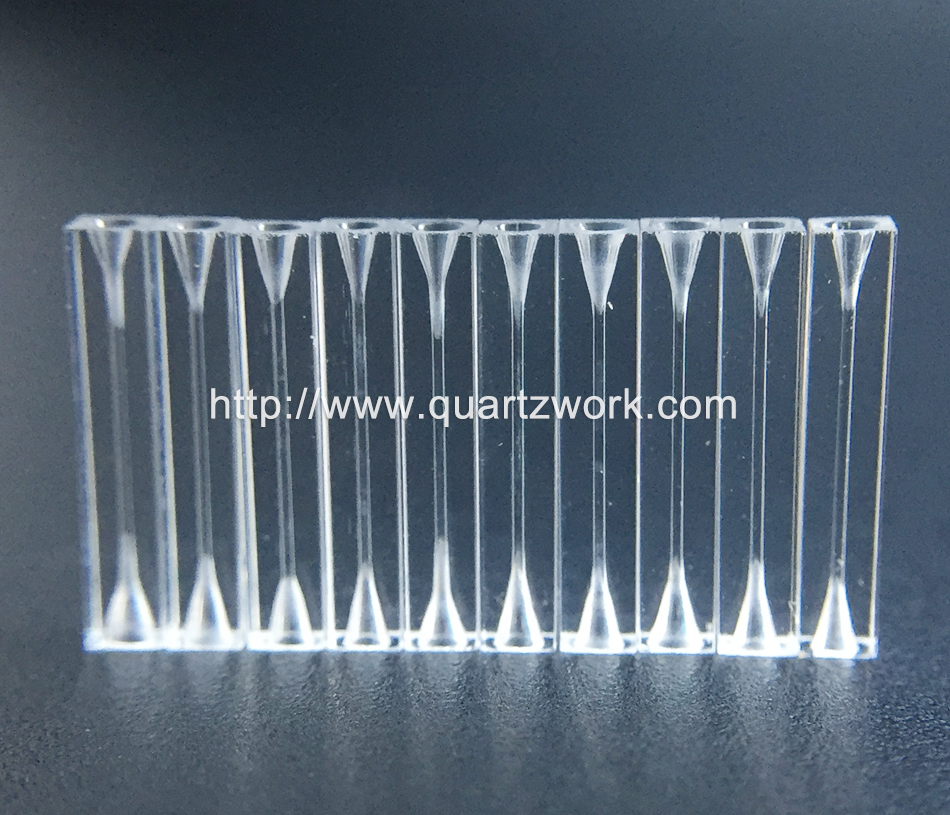

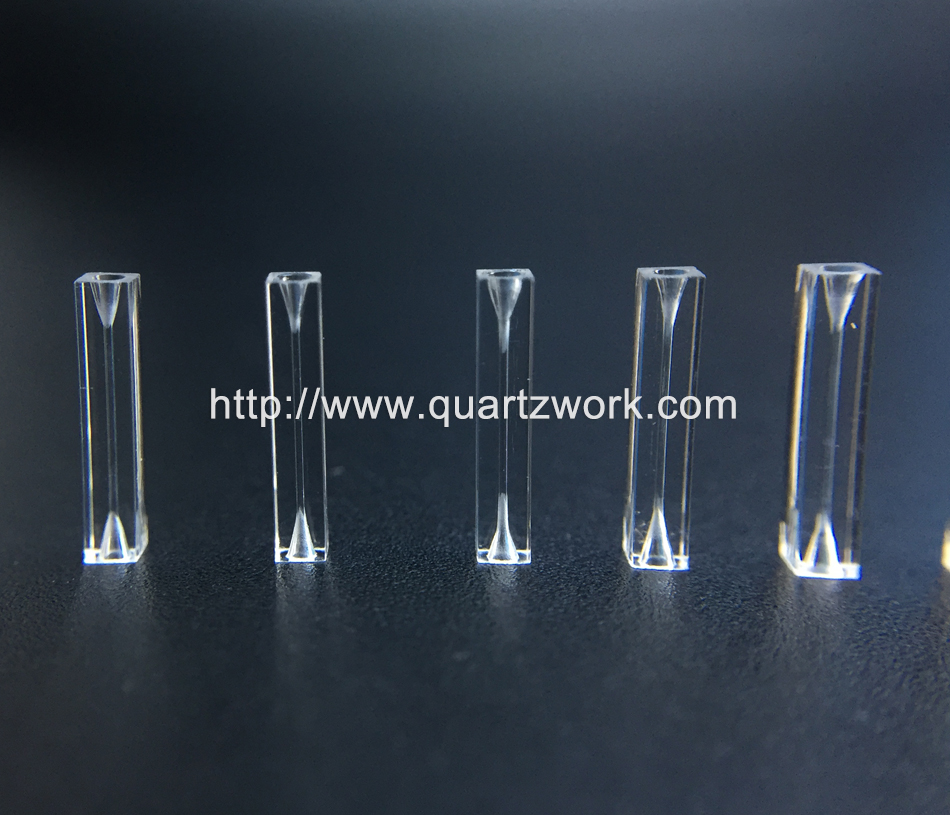

光纤喇叭口石英管 双喇叭口 石英保护套石英光纤管
细管规格参数:
毛细管 Capillary Tube & Rod | |||
参数Parameter | 尺寸 Diameter | 公差 Tolerance | 单位Unit |
长度 Length | 1~2000 | ±0.2 | mm |
外经 OD | 0.2~11 | ±0.03 | |
内径 ID | 0.06~10 | ±0.03 | |
异型毛细管/棒 Shaped Capillary Tube & Rod | |||
形状 Shape | 圆形管、方形管、矩形管、锥形管、D形管、椭圆管、梯形管、六边形管、三角型管、V型棒、U型棒 Circular tube, Square tube, Rectangle tube, Conical tube, D-shaped tube, Elliptical tube, Trapezoidal tube, Hexagonal tube,Triangular tube, V-shaped rod, U-shaped rod | ||
孔径 Aperture | 多孔(双孔、四孔、六孔,七孔,八孔,双排三孔)、椭圆孔、矩形、正方形、三角形,偏心孔、D型孔 Multi-hole (double holes, four holes, six holes, seven holes,eight holes, double row three holes), elliptical, rectangle, square, triangle, eccentric, D-shaped | ||
羟基含量 Hydroxyl group | <10ppm | ||
材料 Material | 石英玻璃、高硼硅玻璃、其他材料 Quartz glass, borosilicate golass, and other materials |
